Circuit Diagram
Circuit Diagram

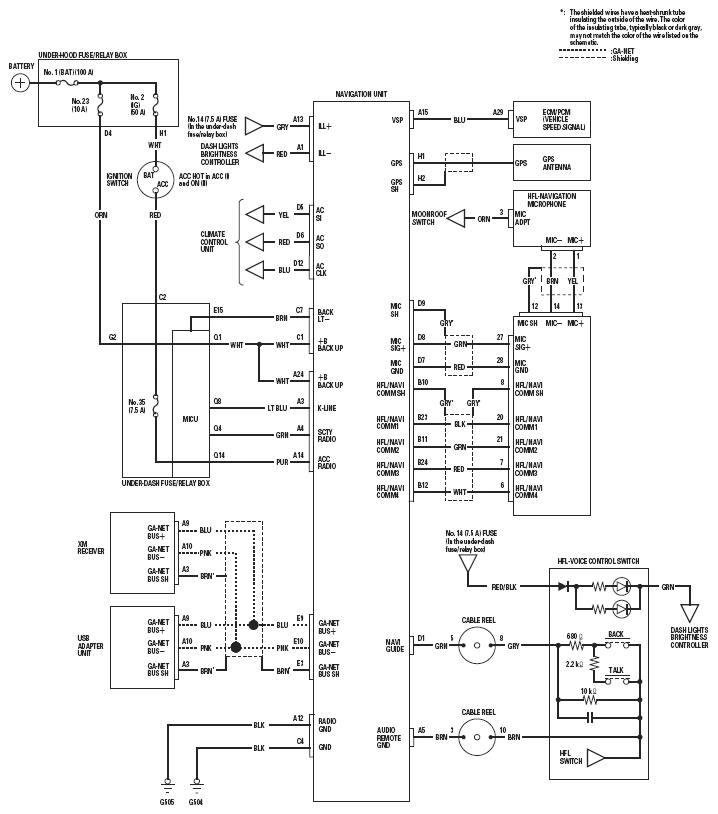

Fig 1: Navigation System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
