Component Location Index

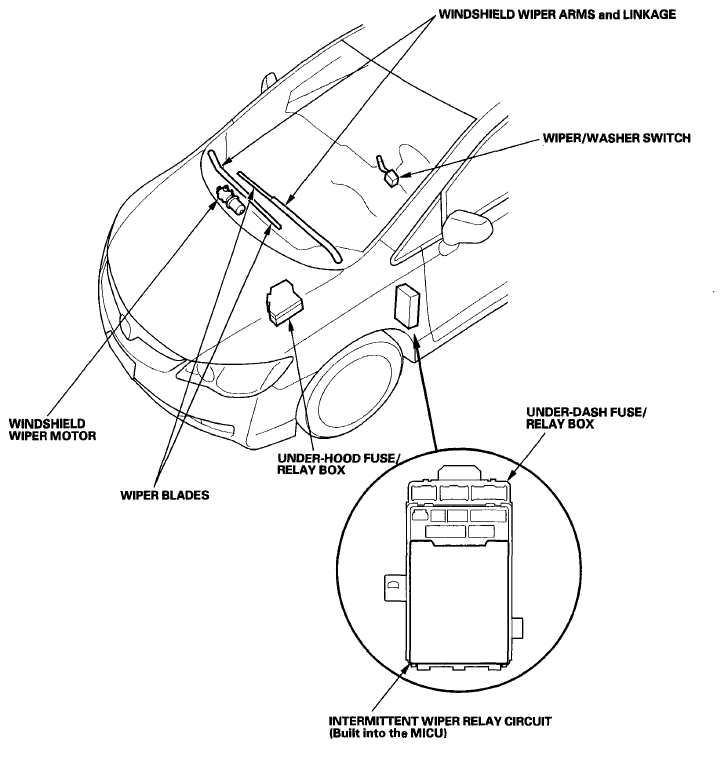

Fig 1: Identifying Wipers And Washers Components Location (1 Of 2)
G06268803Courtesy of AMERICAN HONDA MOTOR CO., INC.

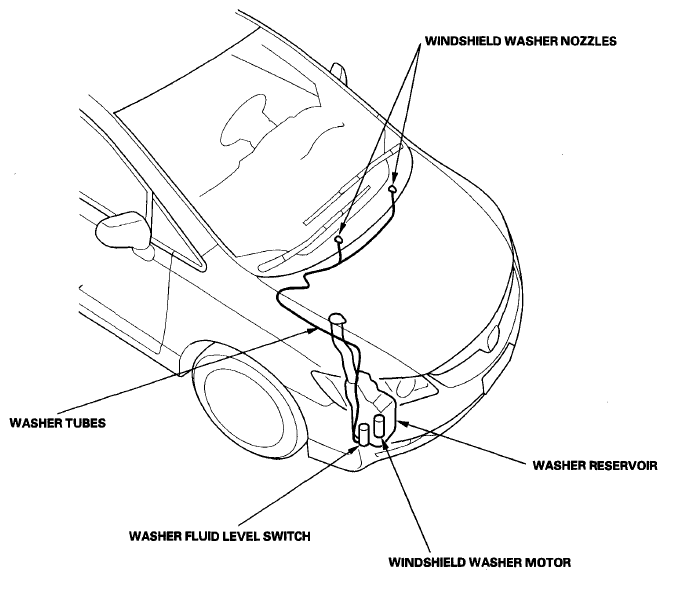

Fig 2: Identifying Wipers And Washers Components Location (2 Of 2)
G06268804Courtesy of AMERICAN HONDA MOTOR CO., INC.
