Steering Column Removal and Installation: Installation

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering column in the reverse order of removal, and note these items
    • Make sure the wires are not caught or pinched by any parts
    • Tighten the three screws (A) in the sequence shown.

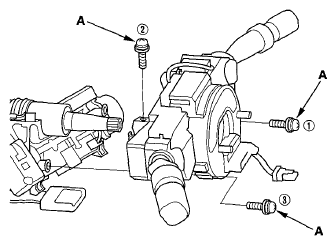

      Fig 1: Identifying Screws Tightening Sequence
      G05987564Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Center the steering rack within its stroke
  3. Loosen the upper steering joint bolt (A) and slip the lower end of the steering joint (B) onto the pinion shaft (C)
    NOTE:
    • Pinion shaft with center guide Install steering joint by aligning the center guide (D)
    • Pinion shaft without center guide Position the steering column by aligning the gap (E) with the angle

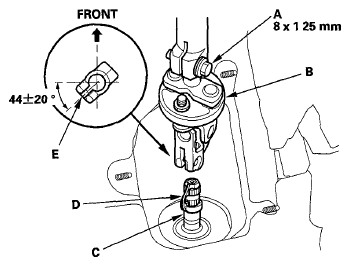

    Fig 2: Identifying Upper Steering Joint Bolt, Steering Joint And Pinion Shaft
    G05987565Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Align the bolt hole (A) on the steering joint with the groove (B) around the pinion shaft, then loosely install the lower steering joint bolt (C) Be sure that the joint bolt is securely in the groove in the pinion shaft

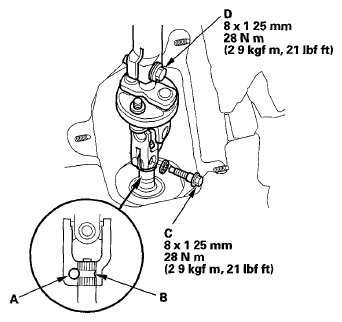

    Fig 3: Aligning Bolt Hole On Steering Joint With Groove Around Pinion Shaft With Torque Specifications
    G05987566Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Pull on the steering joint to make sure that the steering joint is fully seated, then tighten the lower joint bolt to the specified torque
  6. Tighten the upper steering joint bolt (D) to the specified torque
  7. Install the steering joint cover (A)

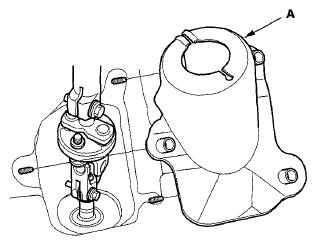

    Fig 4: Identifying Steering Joint Cover
    G05987567Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the column covers (see SIDE DEFOGGER VENT TRIM REMOVAL/INSTALLATION )
  9. Install the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION )
  10. Install the steering wheel (see STEERING WHEEL INSTALLATION ), and the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT )
  11. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), and do these tasks
    • Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off
    • Make sure the horn and turn signal switches work properly
    • Make sure the steering wheel switches work properly
  12. After installation, do these checks
    • Check the steering wheel spoke angle If the steering spoke angles to the right and left are not equal (steering wheel and rack are not centered), correct the engagement of the joint/pinion shaft splines
    • With SH-AWD Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION )
    • Set the steering column to the center tilt position, and to the center telescopic position, then do the front toe inspection (see WHEEL ALIGNMENT )
