Vacuum Hose Routing

WARNING: This page is about a different car, the 2010 Acura TL and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

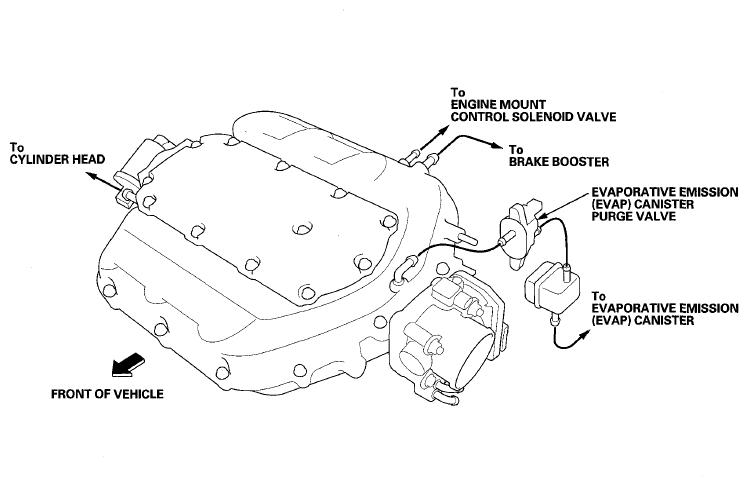

Fig 1: Identifying Vacuum Hose Routing
G06679421Courtesy of AMERICAN HONDA MOTOR CO., INC.
