Intake Manifold Tuning (IMT) Valve

WARNING: This page is about a different car, the 2010 Acura TL and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Engine power is adjusted by opening and closing the intake manifold tuning (IMT) valve. When the valve is closed, there is high torque at low engine speed. When the valve is open, there is high torque at high engine speed.

The intake manifold tuning (IMT) actuator contains a sensor that detects the IMT valve position and sends it to the ECM/PCM.

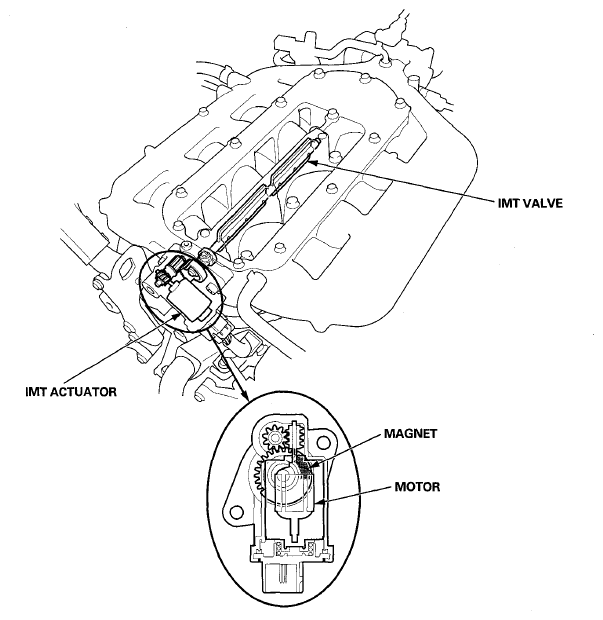

Fig 1: Identifying IMT Valve, IMT Actuator, Magnet And Motor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
