Navi ECU
WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

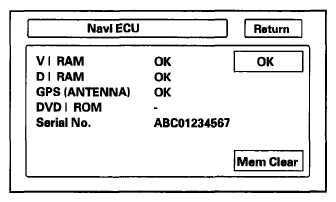

This screen looks for problems with the navigation unit. When you initiate this diagnostic, the navigation unit may delay up to a minute while the diagnosis runs.
- If "V-RAM" or "D-RAM" is NG, then replace the navigation unit.
- If "GPS" indicates "NG (ANT)", then check the entire GPS antenna wire from the navigation unit to the antenna. If the wire is crushed or damaged, try a known good antenna. If this diagnostic reads OK, then order a new GPS antenna. If the diagnostic still reads NG (ANT), then replace the navigation unit.
- "DVD ROM" represents the database version on the DVD. You can also find this information in setup by selecting System Information.
- "Serial No." should be the same as the serial number found on the underside of the navigation unit. You need this number to obtain the security code from the Interactive Network ON) system.
- Mem Clear is for factory use, and should never be used unless instructed by the factory. Accidental selection will erase the client's personal data, PINS, and settings. If selected, a popup box appears asking if you want to clear the memory. If so, select "Yes".
