Tire Calibration
WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

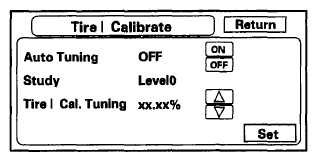

As the vehicle moves, the navigation system receives speed pulses from the ECM/PCM. These pulses are converted using a conversion factor to a mph speed that moves the vehicle position (VP) on the map. The navigation system has an internal tuning function that generates and refines this factor based on actual driving. The "Level" indicates the status of the tuning.
- The "Auto Tuning" is factory set to "ON", and should remain on.
- The "Study" indicates the tuning status.
- The "Tire-Cal. Tuning" and "Set" should not be used. It is for factory use only.
