Start-up procedure and Diagnosis Menu
WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch to the ON (II) position.
Press and hold Menu, Map/Guide, and Cancel buttons. Keep them pressed for approximately 3 seconds. The display screen then goes directly to the Diagnostic Menu.

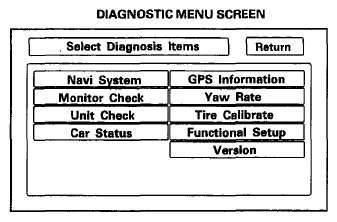

- After the display changes to the Diagnostic Menu, select the item you want to check, and the test will begin. To return to the previous screen, select "Return".
- Navi System (Link)
- Monitor Check
- Unit Check
- Car Status
- GPS Information
- Yaw Rate
- Tire Calibrate
- Functional Setup
- Version
