Touch Panel Calibration
WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.
The display screen uses a touch sensitive membrane. This means that every location of the entire surface of the display is touch sensitive. This diagnostic allows alignment of these touch locations with the location of the buttons images on the screen.
Normally this should never need adjustment, and is used only to adjust the touch locations for parallax (the touch locations appear different when viewed at an angle). However if an adjustment is necessary, the procedure is below.

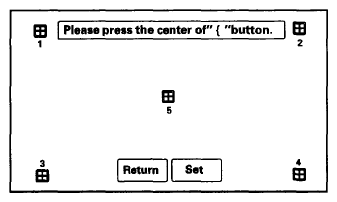

- The screen consists of the "{" button icons. Touch the center of the five " " buttons on order 1{5.
- To store any change you make, touch the "Set" button.
- Use the Return key to exit the diagnostic.
