Function Diagram

WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

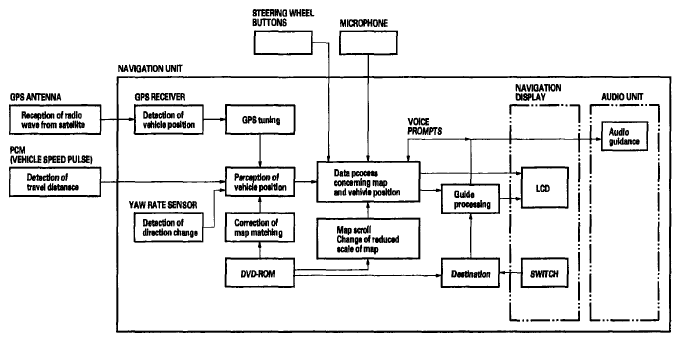

Fig 1: Navigation Function Diagram
G06268985Courtesy of AMERICAN HONDA MOTOR CO., INC.
