Diagnostic System Diagram
WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

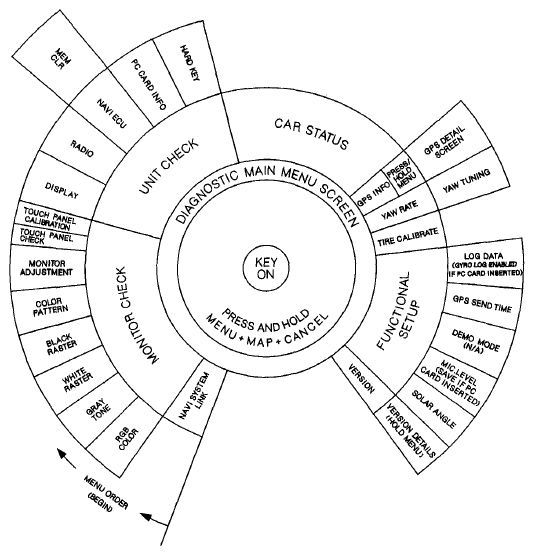

This diagram below shows and over view of the navigation diagnostic features starting at the center and working outward in layers. The diagram starts with "Key on". Next the diagram shows two ways to get the diagnostic main menu:
- By starting the vehicle with the SCS connector plugged in, you will enter the diagnostic "System Links" screen. Touch "Return" to get the main diagnostic menu.
- From any of the navigation Map or Menu screens, press and simultaneously hold the keys Menu Map Cancel.
Finally, the diagram shows the available diagnostic menu choices, starting at the bottom left, and moving clockwise. In most cases, do not clear or change settings in any diagnostic screen unless instructed to do so in the explanation, or by the factory. If the factory asks you to insert a PCMCIA memory card into the "PC Slot", then the features specified on the diagram as "(Card)" are available.
