Navigation frequently asks for anti-theft code and needs GPS initialization
WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

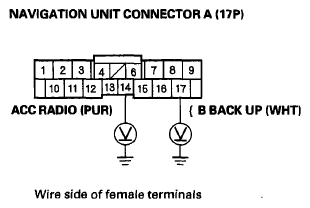

- Measure the voltage between navigation unit connector A (17P) terminal No. 14 and body ground, and between terminal No. 17 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery on both terminals?
YES | Go to step 2.
NO -Repair open in the wire between the under-dash fuse/relay box and the navigation unit.
- Measure the voltage between navigation unit connector A (17P) terminal No. 9 and body ground, and between navigation unit connector C (12P) terminal No. 4 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there less that 0.1 V?
YES -Replace the navigation unit (see NAVIGATION UNIT REMOVAL/INSTALLATION ).
NO -Repair open in the wire between the navigation unit and body ground (G501).
