Microphone Replacement

WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front individual map light lens (A).

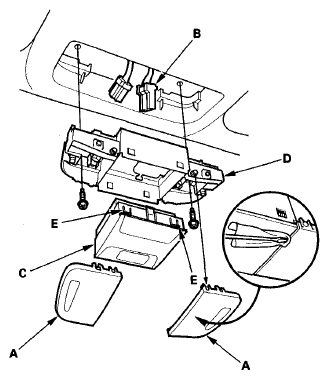

    Fig 1: Identifying Microphone 10P Connector And Front Individual Map Light Lens
    G06269044Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 10P connector (B) from the microphone.
  3. Carefully pry off the microphone (C) from the map lights housing (D) while pressing in on the retaning tabs (E).
  4. Install in the reverse order removal.
