Section 76 (Navigation System)
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

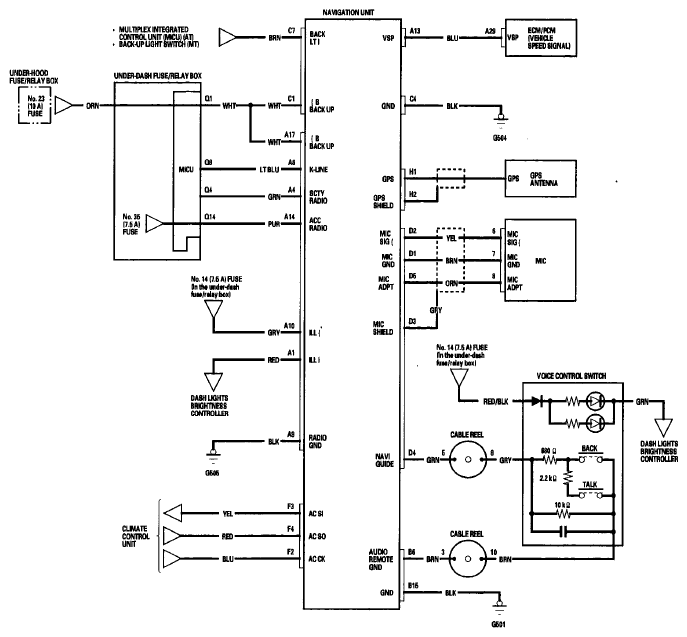

Fig 1: Navigation System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
