Canada models with SH-AWD

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION )
  2. Disconnect the 6P connector (A) from the headlight washer switch (B)
    Fig 1: Identifying Headlight Washer Switch And 6P Connector
    G05989053Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table
    NOTE: Make sure the correct test lead (+ or -) is placed on the terminal

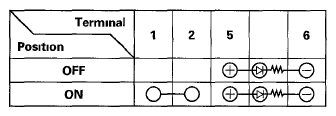

    Fig 2: Switch Position Terminals Continuity Chart
    G05989054Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the switch
  5. Install the switch in the reverse order of removal
