Rearview Mirror Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Slide the rearview mirror harness upper cover (A) forward to release it from the headliner (B) Pry out the rearview mirror harness lower cover (C) to detach the hooks (D), then slide the lower cover rearward, and remove the lower cover by detaching the hooks (E) on the rearview mirror harness cover base (F)

Fig 1: Identifying Rearview Mirror Harness Upper Cover, Headliner, Mirror Harness Lower Cover, Hooks And Rearview Mirror Harness Cover Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (A)

Fig 2: Identifying Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

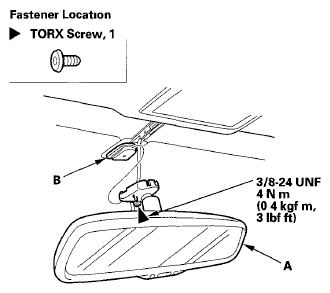

Loosen the screw with a TORX T20 bit, then slide the rearview mirror (A) rearward and off the mount (B)

Fig 3: Rearview Mirror And Mount With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the mirror in the reverse order of removal, and note these items
- Before installing the mirror, remove the TORX screw, and apply medium strength liquid thread lock to it
- Make sure the connector is plugged in properly
- Push the hooks into place securely.
