Rear Camera
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

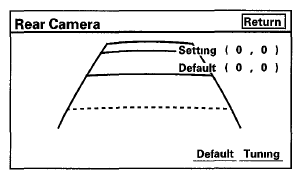

If you selected the Rear camera, the rearview camera image appears If you need to adjust the guide line, select Turning and adjust the guide line with the jog dial The Default button resets the guide line position to factory specifications
If the client starts the vehicle, and immediately shifts into R position, the camera image appears within 1 second, but the guidelines may take up to 7 seconds to appear This is normal
The rearview camera is connected to the audio-navigation unit via the navigation display unit The audio-navigation unit must boot up (7 seconds) before it can display the guidelines
