GPS Information

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

This screen shows the current status of GPS reception The circular diagram shows the current location of the GPS satellites (yellow numbers) as they would appear in the sky The outer circle represents the horizon (0 degrees elevation) The middle and inner circles represents 30 and 60 degrees respectively The very center of the diagram (90 degrees elevation) is directly overhead Nearby obstructions, like tall buildings will block satellites in that direction That is why it is necessary to be in an open area to effectively troubleshoot GPS reception issues The satellite numbers shown on the diagram correspond to the PRN number in the GPS Details screen There are always at least 24 active GPS satellites in orbit Because satellites fail, and have to be removed from service, spares are always parked in orbit, ready to be activated This is why the PRN (satellite ID number) can be greater than 24

NOTE: When you use this screen for troubleshooting, park the vehicle outside, away from buildings, tall trees, and high-tension wires for at least 10 minutes with the engine running

The Number of Satellites box shows the number of acquired satellites (maximum of 12) It should contain three or more icons If not, troubleshoot for GPS icon is white or not shown (see GPS ICON IS WHITE OR NOT SHOWN )
The Current Position shows latitude, longitude, and elevation (in feet) If there are less than four satellites, the elevation can be grossly inaccurate
The Date/Time field shows the current date, and also a time that includes daylight savings and other offsets entered by the customer in Setup screen 2 Adjust Time Zone/Clock

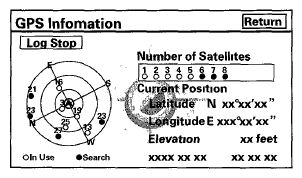

Fig 1: Screen Display - GPS Information
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Pressing the MAP/GUIDE button displays the satellite number on each circle.
