HDD Removal/Installation

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Check any official Honda service website for more service information about the navigation system
Static electricity can damage the HDD Always follow proper handling procedures
Always use the anti-static mat (ESD) and wrist strap when removing the HDD Before you open the audio-navigation unit or handle the replacement HDD, attach the wrist strap around one of your wrists, and attach the alligator clip to the ESD mat
Make sure you use the screws in the same holes The HDD can be damaged if the wrong screws are used
You do not have to peel off the plastic cover to remove the screws or the HDD
Do not force the HDD If it does not slide in smoothly, check the alignment of the HDD and the pins If the pins are bent, replace the HDD
Make sure the HDD screws are not loose If they are, the HDD can be damaged
Handle the HDD by its edges Do not touch the pins

Remove the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION )
Remove the screws (A)

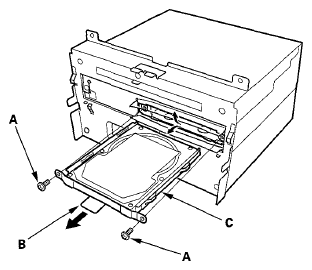

Fig 1: Removing HDD
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lift the plastic tab (B), and use it to pull out the HDD (C)
Install the HDD in the reverse order of removal
NOTE: Make sure the HDD is properly aligned when installing the HDD
