Glove Box Removal/Installation

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the Acura Tool and Equipment Program, call 888-424-6857

NOTE:

Take care not to scratch the dashboard or the panels
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components

Remove these items
- Passenger's dashboard trim (see PASSENGER'S DASHBOARD TRIM REMOVAL/INSTALLATION )
- Passenger's dashboard undercover (see Passenger's Dashboard Undercover Removal/Installation )

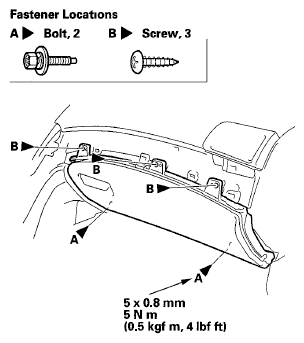

Remove the bolts (A) and the screws (B)

Fig 1: Passenger's Dashboard Trim Clip Location With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

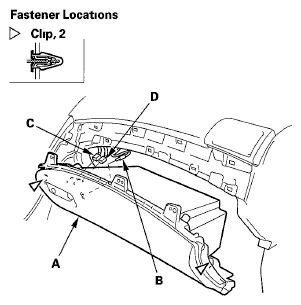

Remove the glove box (A).
1. Pull the glove box (A) by hand to detach the clips
2. Disconnect the glove box light bulb (B), the trunk lid opener main switch connector (C), and the keyless access system mode switch connector (D) (for some models
Install the glove box in the reverse order of removal, and note these items
- If the clips are damaged or stress-whitened, replace them with new ones
- Make sure each connector is plugged in properly
- Push the clips into place securely
