Rear Inner Fender Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands
Take care not to scratch the body and related parts
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the rear inner fender (A)
1. -1 Remove the screw (B) that secures the inner fender and the side sill panel (C) from the front of the rear wheel arch
2. -2 Remove the screws (D) that secure the inner fender and the rear bumper (E) from the rear of the rear wheel arch
3. -3 Remove the bolts (F), the screw (G), and the clips (H, I, J, K) from the rear wheel arch
4. -4 Pull out the rear inner fender

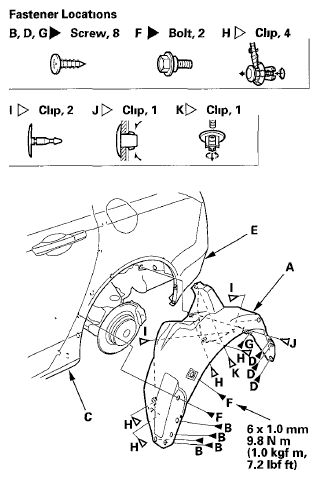

Fig 1: Rear Inner Fender, Screws, Bolts, Clips And Side Sill Panel With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the inner fender in the reverse order of removal, and note these items

If the clips are damaged or stress-whitened, replace them with new ones
Push the clips into place securely
