Starter Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine compartment covers (see ENGINE COMPARTMENT COVER REPLACEMENT )
  2. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION )
  3. Remove the battery base (see step 7 on ENGINE REMOVAL )
  4. Remove the air intake duct splash separator (see step 4 on ENGINE REMOVAL )
  5. Remove the harness clamp (A)

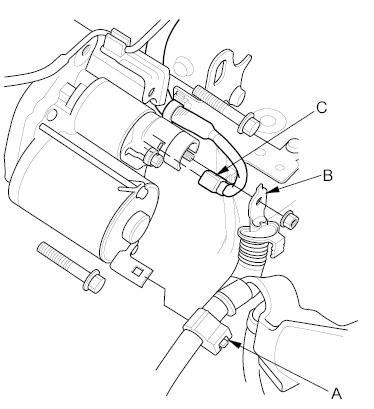

    Fig 1: Identifying Harness Clamp, Upper Radiator Hose Bracket, Positive Starter Cable And S Terminal Connector (M/T Model)
    G00492180Courtesy of AMERICAN HONDA MOTOR CO., INC.

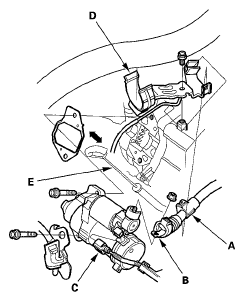

    Fig 2: Identifying Harness Clamp, Upper Radiator Hose Bracket, Positive Starter Cable And S Terminal Connector (A/T Model)
    G05986510Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Disconnect the positive starter cable (B) and the S terminal connector (C)
  7. Remove the upper radiator hose bracket (D) and the dipstick (E)
  8. Remove the two bolts holding the starter, then remove the starter
