Driver's Air Mix Control Motor Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION )
  2. Remove the self-tapping screws, the air hose (A), and the driver's heater duct (B)
    Fig 1: Identifying Driver's Heater Duct And Air Hose
    G05988690Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 7P connector (A) from the driver's air mix control motor (B) Remove the self-tapping screws and the driver's air mix control motor from the heater unit

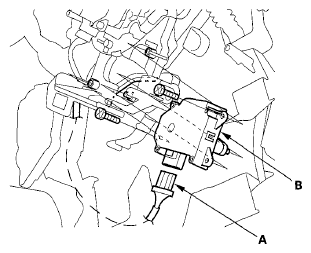

    Fig 2: Identifying Driver's Air Mix Control Motor And 7P Connector
    G05988691Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal Make sure the pin on the motor is properly engaged with the linkage After installation, make sure the motor runs smoothly
