Driveshaft Inspection

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For SH-AWD model Make sure to use silicone-type (gray) boots on the right front driveshaft inboard joint.

Check the inboard boot (A) and the outboard boot (B) on the driveshaft (C) for cracks, damage, leaking grease, and loose boot bands (D). If any damage is found, replace the boot and the boot bands.

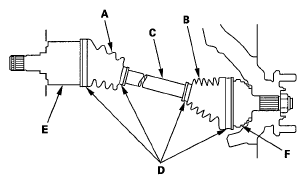

Fig 1: Identifying Inboard Boot, Outboard Boot, Driveshaft And Boot Bands
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the driveshaft for cracks and damage If any damage is found, replace the driveshaft
Check the inboard joint (E) and the outboard joint (F) for cracks and damage If any damage is found, replace the inboard joint or the outboard joint as an assembly.
Hold the inboard joint and turn the front wheel by hand, then make sure the joint is not excessively loose If necessary, replace the inboard joint or the outboard joint as an assembly
