Output Shaft (Countershaft) Speed Sensor Replacement

  1. Disconnect the output shaft (countershaft) speed sensor 3P connector (A).

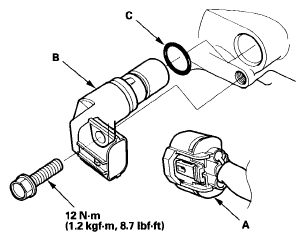

    Fig 1: Output Shaft (Countershaft) Speed Sensor 3P Connector With Torque Specifications
    G06264634Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the output shaft (countershaft) speed sensor (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
