Crankshaft Position (CKP) Sensor

The CKP sensor detects crankshaft speed and is used by the ECM/PCM to determine ignition timing and timing for fuel injection of each cylinder as well as detecting engine misfire.

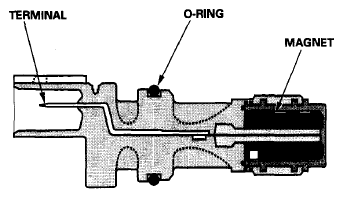

Fig 1: Identifying Crankshaft Position (CKP) Sensor
G06265759
