Home >> Acura >> 2009 >> CSX Base, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Fan Controls >> Circuit Diagram

Circuit Diagram

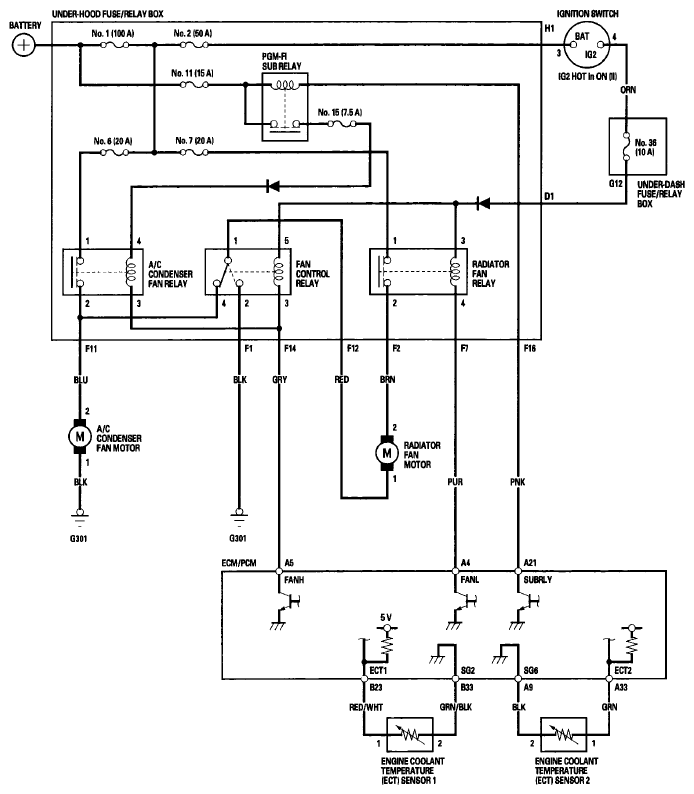

Fig 1: Fan Controls - Circuit Diagram

G06265730
