Starter Removal and Installation: Removal

Make sure you have the anti-theft code for the audio unit or the navigation system, then write down the audio presets.
Disconnect the negative cable from the battery first, then disconnect the positive cable.
Remove the splash shield.

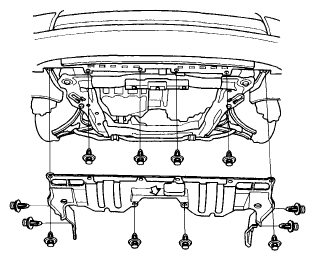

Fig 1: Identifying Splash Shield And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake manifold bracket.
K20Z2 engine

Fig 2: Identifying Intake Manifold Bracket Bolt And Nut (K20Z2 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

K20Z3 engine

Fig 3: Identifying Intake Manifold Bracket Bolt And Nut (K20Z3 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two bolts securing the starter, then remove the starter from the engine.

Fig 4: Identifying Bolts Securing Starter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the starter cable (A) from the B terminal, then disconnect the BLK/WHT wire (B) from the S terminal.

Fig 5: Identifying Starter Cable A From B Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness clamp (C), then remove the starter.
