Center Console Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through Honda Canada Inc. Technical Tools Department; Fax #1-866-398-8665/

e-mail: ch_technicaltools@ch.honda.com

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
2. M/T model: Lower the shift lever boot (A) to release the hooks (B) from the boot, then remove the shift knob (C).
   Fig 1: Releasing Hooks And Shift Knob

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Detach the clips by pulling the front inner panel (A) up.
   Fig 2: Identifying Front Inner Panel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

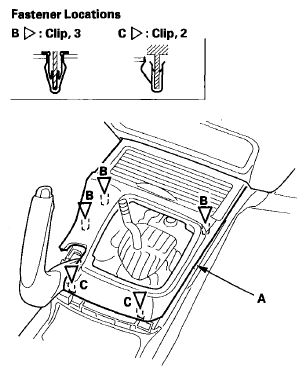

4. Gently pull out along the rear of the center console panel (A) to release the clips (B, C).
   Fig 3: Identifying Center Console Panel And Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Pull the center console panel (A) up and rearward to release the tabs (B).
   Fig 4: Pulling Center Console Panel And Tabs

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Open the armrest (A), then remove the console box mat (B) and bolts.
   Fig 5: Armrest And Console Box Mat With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

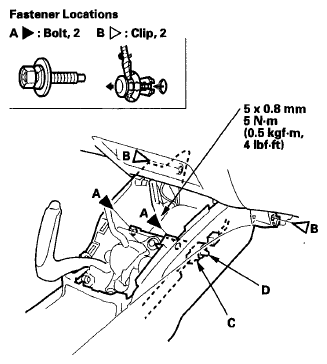

7. From the front portion of the center console, remove the bolts (A) and clips (B), and disconnect the console subharness connector (C), then detach the connector clip (D).
   Fig 6: Console Subharness Connector And Connector Clip With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Slide both front seats all the way back, and recline the seat-back fully.
9. Slide the center console (A) rearward to release the pins (B) from the bracket (C).
   Fig 7: Identifying Center Console, Pins And Bracket

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Lift up the rear of the console (A), and remove it from the dashboard.
    Fig 8: Lifting Rear Of Console

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. If equipped, disconnect the seat heater switch connectors (B).
12. Install the console in the reverse order of removal, and note these items:
    • Make sure each connector is plugged in properly.
    • Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
    • Push the clips and hooks into place securely.
    • When installing the center console panel, install the tabs (A) into the notch (B) of the parking brake base frame (C).
      Fig 9: Identifying Notch And Parking Brake Base Frame

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
