Battery Removal and Installation: Installation

Install the battery (A), then install the battery setting plate (B).

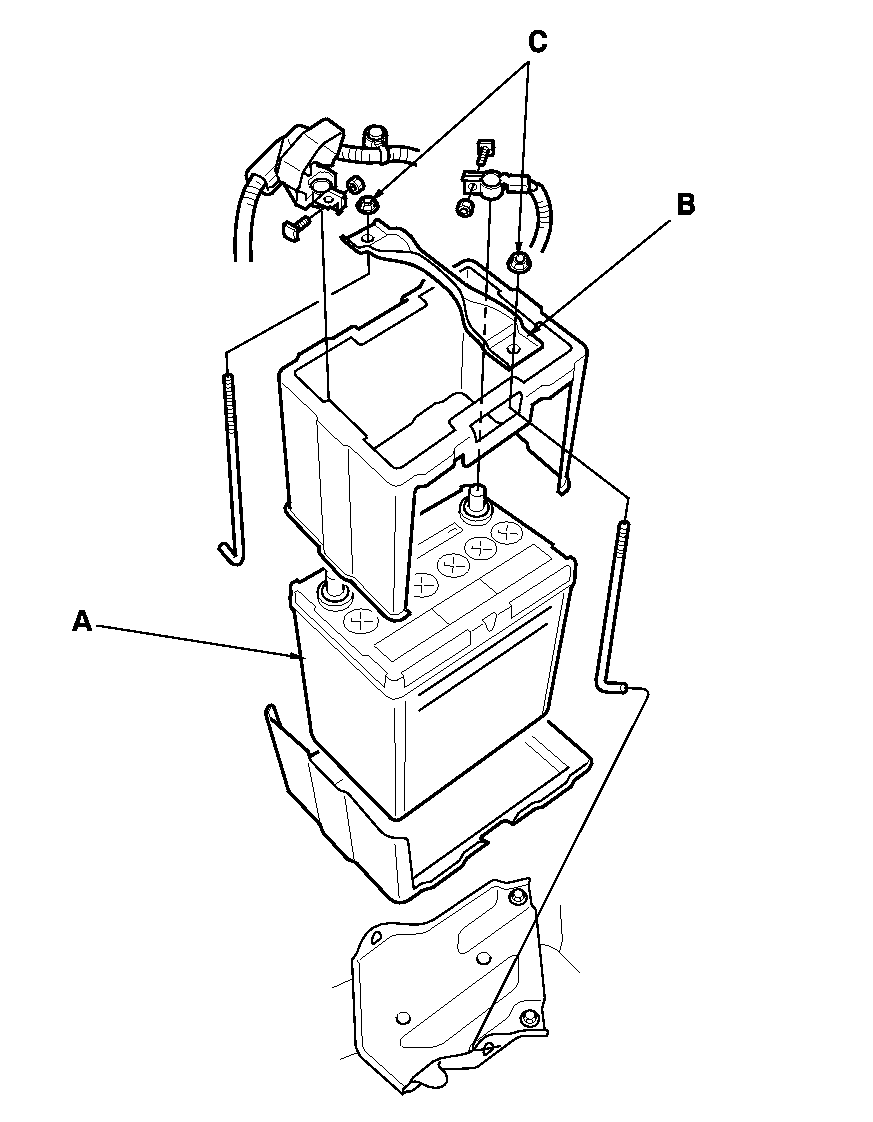

Fig 1: Installing The Battery
Tighten the two nuts (C) equally until the battery is stable.
NOTE: Do not deform the battery setting plate by over-tightening the nuts.
Do the battery terminal reconnection procedure (see Disconnection ).

NOTE: Make sure the positive terminal and the negative terminal are not reverse-connected.
