Circuit Diagram
Circuit Diagram

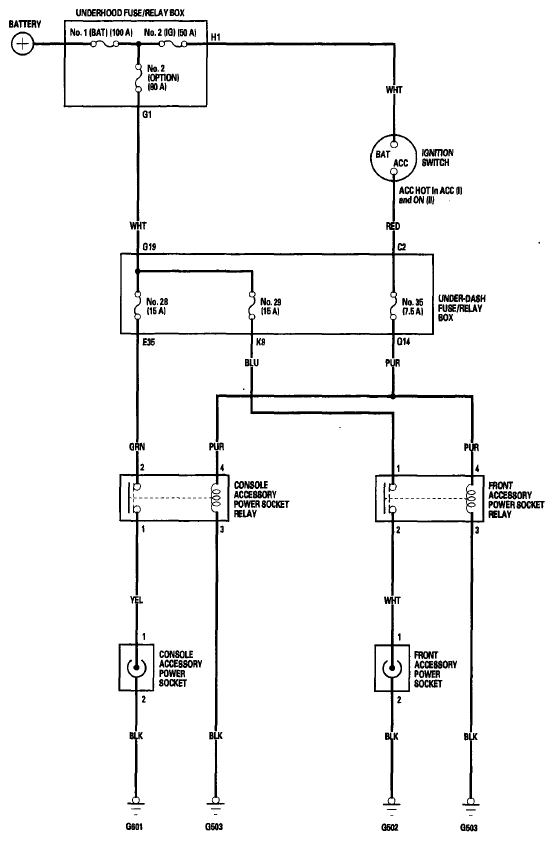

Fig 1: Accessory Power Sockets - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
