Under-Hood Multi-Relay Box Connector End View

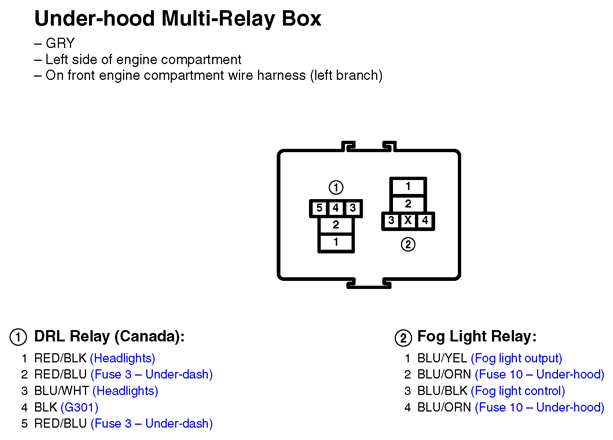

Fig 1: Under-Hood Multi-Relay Box Connector End View

G11249783
