Air Mix Control Motor, Driver's Connector End View
Air Mix Control Motor, Driver's Connector End View

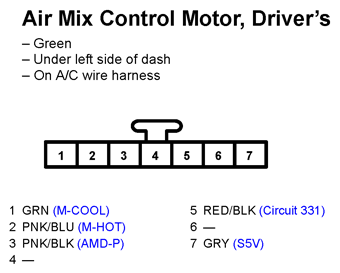

Fig 1: Air Mix Control Motor, Driver's Connector End View
