Home >> Acura >> 2008 >> TSX Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Circuit Diagram

Circuit Diagram

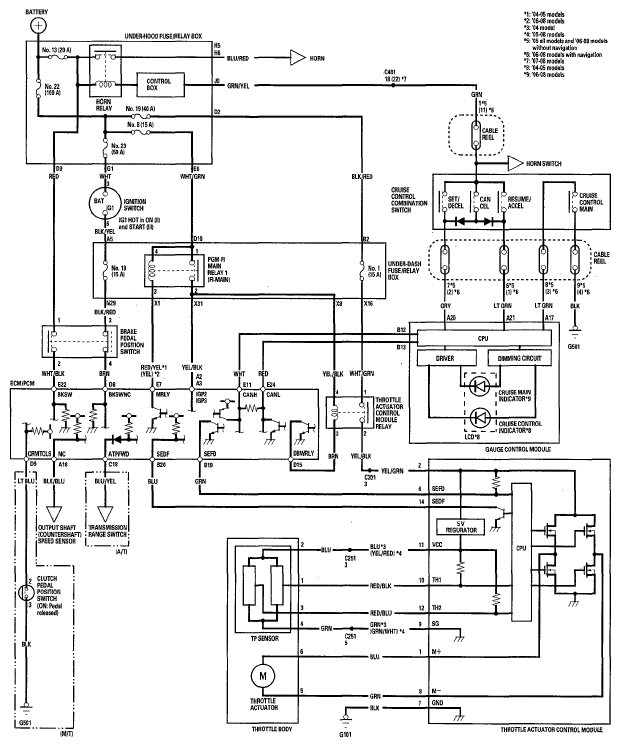

Fig 1: Cruise Control - Circuit Diagram

G05489976

Courtesy of AMERICAN HONDA MOTOR CO., INC.
