M/T model: Disassembly/Reassembly

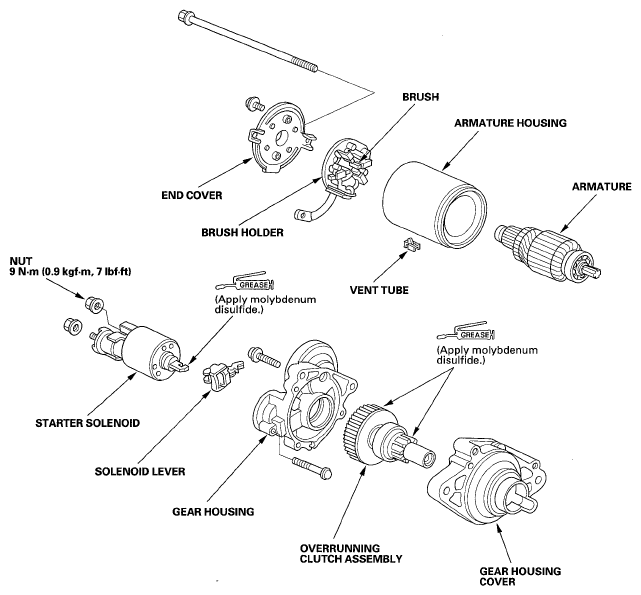

Fig 1: Starting System Replacement Components - M/T Models With Torque Specifications

G05457401

Courtesy of AMERICAN HONDA MOTOR CO., INC.
