M/T model

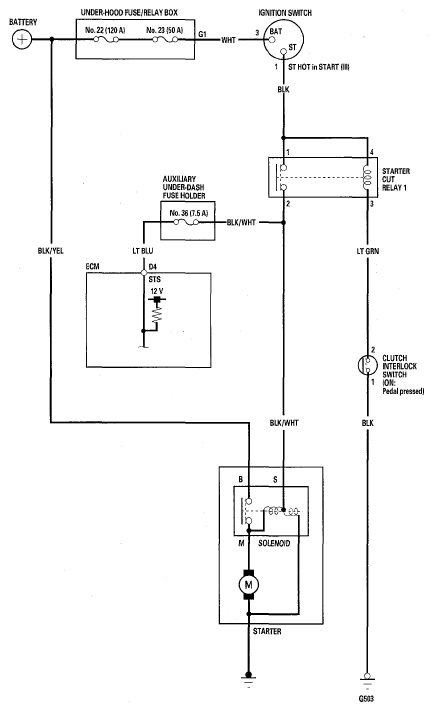

Fig 1: Starting System - Circuit Diagram (M/T Model)

G05457384

Courtesy of AMERICAN HONDA MOTOR CO., INC.
