A/T model

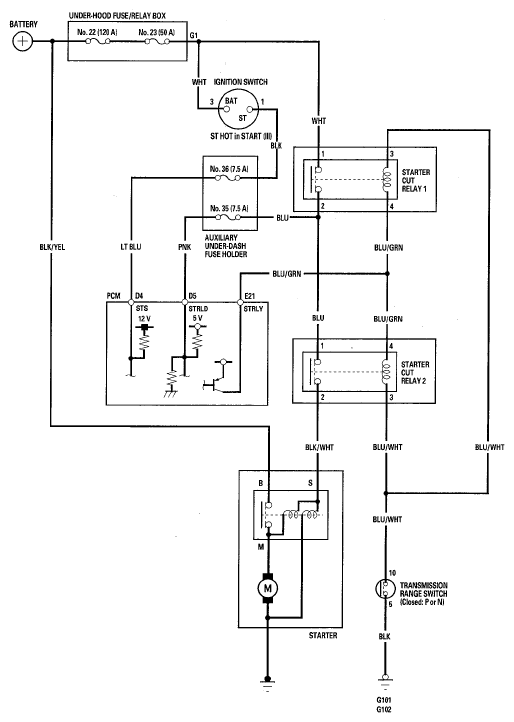

Fig 1: Starting System - Circuit Diagram (A/T Model)

G05457385

Courtesy of AMERICAN HONDA MOTOR CO., INC.
