Engine Removal

Special Tools Required

NOTE:
  • Use fender covers to avoid damaging painted Surfaces.
  • To avoid damaging the wires and terminals, unplug the wiring connectors carefully while holding the connector portion.
  • Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact other wiring or hoses, or interfere with other parts.
  1. Make sure you have the anti-theft codes for the audio system and the navigation system (if equipped). Make sure the ignition switch is OFF.
  2. Disconnect the support struts from both sides of the pivot ball (bolted to the hood). Secure the hood (A) in a vertical position. Remove the right side pivot ball and install it into the lower threaded hole (B), then reattach the support strut.
    NOTE: Do not attempt to close the hood with the support strut in the vertical position, as it will damage the support strut and hood.
    Fig 1: Identifying Hood And Lower Threaded Hole
    G05457501Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the left side engine compartment cover (A) and the left rear engine compartment cover (B).
    Fig 2: Identifying Left Side Engine Compartment Cover And Rear Engine Compartment Cover
    G05457502Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the right side engine compartment cover (A), then remove the right rear engine compartment cover (B).
    Fig 3: Identifying Right Side Engine Compartment Cover
    G05457503Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the engine cover.
    Fig 4: Identifying Engine Cover
    G05457504Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Drain the power steering system fluid, then plug the fluid reservoir and return hose (see FLUID CHECK/REPLACEMENT ).
  7. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
  8. Disconnect the negative cable from the battery first, then disconnect the positive cable.
  9. Remove the battery.
  10. Disconnect the breather pipe (A), then remove the intake air duct (B).
    Fig 5: Identifying Breather Pipe And Intake Air Duct
    G05457505Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  12. Remove the harness clamps (A).
    Fig 6: Identifying Harness Clamps
    G05457506Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Remove the four bolts securing the battery base, then remove the battery base (B).
  14. Remove the battery cables (A) from the under-hood fuse/relay box, then disconnect the harness connector (B).
    Fig 7: Identifying Battery Cables And Under-Hood Fuse/Relay Box
    G05457507Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Remove the under-hood fuse/relay box (C) from the body.
  16. Remove the harness clamp (A), and remove the two 6 mm bolts (B), then remove the strut brace (C).
    Fig 8: Identifying Harness Clamp And Strut Brace Bolts
    G05457508Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Disconnect the brake booster vacuum hose (A) and evaporative emission (EVAP) canister hose (B).
    Fig 9: Identifying Brake Booster Vacuum Hose And Evaporative Emission (EVAP) Canister Hose
    G05457509Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Remove the quick-connect fitting cover (A), then disconnect the fuel feed hose (B) (see FUEL LINE/QUICK-CONNECT FITTING REMOVAL ).
    Fig 10: Identifying Quick-Connect Fitting Cover And Fuel Feed Hose
    G05457510Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Remove the harness clamp (A), and disconnect the engine wire harness connectors (B) on the left side of the engine compartment.
    Fig 11: Identifying Harness Clamp And Engine Wire Harness Connectors
    G05457511Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. M/T model: Remove the three bolts securing the shift cable holder, then remove the shift cable and select cable. Do not bend the cables excessively (see step 17 on TRANSMISSION REMOVAL ).
  21. M/T model: Remove the clutch slave cylinder and clutch line bracket mounting bolt. Do not operate the clutch pedal once the slave cylinder has been removed (see step 19 on TRANSMISSION REMOVAL ).
  22. Remove the drive belt (see DRIVE BELT REPLACEMENT ).
  23. Remove the power steering (R/S) pump outlet line (A) from the P/S pump, then plug the outlet line and the P/S pump.
    Fig 12: Identifying Power Steering (R/S) Pump Outlet Line
    G05457512Courtesy of AMERICAN HONDA MOTOR CO., INC.
  24. Remove the P/S hose (B) from the clamp (C).
  25. Remove the P/S fluid reservoir from the clamp.
    Fig 13: Identifying P/S Hose From Clamp And P/S Fluid Reservoir From Clamp
    G05457513Courtesy of AMERICAN HONDA MOTOR CO., INC.
  26. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
  27. Remove the steering joint cover (A).
    Fig 14: Identifying Steering Joint Cover
    G05457514Courtesy of AMERICAN HONDA MOTOR CO., INC.
  28. Make a reference mark (B) across the steering joint and steering gearbox pinion shaft. Remove the steering joint bolt (C), and disconnect the steering joint (D) by removing the steering joint toward the steering column. Hold the slider shaft (E) on the column with a piece of wire (F) between the joint yoke (G) on the slider shaft to the joint yoke on the upper shaft (see step 8 on STEERING COLUMN REMOVAL AND INSTALLATION ).
  29. Remove the radiator cap.
  30. Raise the vehicle on the lift to full height.
  31. Remove the front wheels.
  32. Remove the engine under cover.
    Fig 15: Identifying Engine Under Cover
    G05457515Courtesy of AMERICAN HONDA MOTOR CO., INC.
  33. Remove the splash shield.
    Fig 16: Identifying Splash Shield
    G05457516Courtesy of AMERICAN HONDA MOTOR CO., INC.
  34. Loosen the drain plug in the radiator, and drain the engine coolant (see COOLANT CHECK ).
  35. Drain the transmission fluid:
  36. Drain the engine oil (see ENGINE OIL REPLACEMENT ).
  37. Disconnect the stabilizer links (see STABILIZER LINK REMOVAL/INSTALLATION ).
  38. Remove the damper fork (see step 5 on DAMPER/SPRING REMOVAL AND INSTALLATION ).
  39. Separate the tie-rod end ball joints from the knuckles (see step 11 on KNUCKLE/HUB/WHEEL BEARING REPLACEMENT ).
  40. Separate the knuckles from the lower arms (see step 5 on LOWER ARM REMOVAL/INSTALLATION ).
  41. Remove the driveshafts (see step 10 on DRIVESHAFT REMOVAL ). Coat all precision-finished surfaces with clean engine oil. Tie plastic bags over the driveshaft ends.
  42. Remove exhaust pipe A.
    Fig 17: Identifying Exhaust Pipe
    G05457517Courtesy of AMERICAN HONDA MOTOR CO., INC.
  43. Disconnect the P/S hose (A), then plug the line and the hose.
    Fig 18: Identifying P/S Hose
    G05457518Courtesy of AMERICAN HONDA MOTOR CO., INC.
  44. Disconnect the power steering pressure switch connector (A).
    Fig 19: Identifying Power Steering Pressure Switch Connector
    G05457519Courtesy of AMERICAN HONDA MOTOR CO., INC.
  45. M/T model: Remove the nuts securing the transmission lower front mount and transmission lower rear mount.
    Fig 20: Identifying Transmission Lower Front Mount And Transmission Lower Rear Mount Nuts
    G05457520Courtesy of AMERICAN HONDA MOTOR CO., INC.
  46. A/T model: Remove the bolts securing the transmission lower mount.
    Fig 21: Identifying Transmission Lower Mount Bolts
    G05457521Courtesy of AMERICAN HONDA MOTOR CO., INC.
  47. Lower the vehicle on the lift.
  48. Remove the radiator (see RADIATOR AND FAN REPLACEMENT ).
  49. A/T model: Remove the shift cable. Do not bend the shift cable excessively (see SHIFT CABLE REPLACEMENT ).
  50. Disconnect the heater hoses.
    Fig 22: Identifying Heater Hoses
    G05457522Courtesy of AMERICAN HONDA MOTOR CO., INC.
  51. Remove the four bolts securing the A/C compressor.
    Fig 23: Identifying A/C Compressor Bolts
    G05457523Courtesy of AMERICAN HONDA MOTOR CO., INC.
  52. A/T model: Disconnect the ATF cooler hoses from the transmission, then plug the ATF cooler hoses and lines (see ATF COOLER HOSE REPLACEMENT ).
  53. Remove the connector bracket from the front cylinder head; use the bracket bolt hole to attach the engine hanger balance bar front arm.
    Fig 24: Identifying ATF Cooler Hoses From Transmission
    G05457524Courtesy of AMERICAN HONDA MOTOR CO., INC.
  54. Remove the harness clamp bracket from the rear cylinder head; use the bracket bolt hole to attach the engine hanger balance bar rear arm.
    Fig 25: Identifying Rear Cylinder Head Harness Clamp Bracket Bolt
    G05457525Courtesy of AMERICAN HONDA MOTOR CO., INC.
  55. A/T model: Remove the shift cable bracket from the front subframe.
    Fig 26: Identifying Shift Cable Bracket From Front Subframe
    G05457526Courtesy of AMERICAN HONDA MOTOR CO., INC.

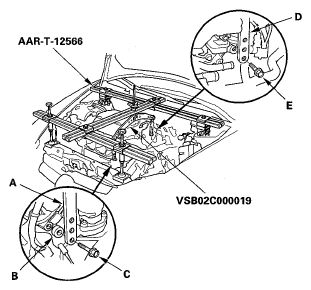

  56. Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ). Then lift and support the engine/transmission with engine support hanger (AAR-T-12566) and engine hanger balance bar (VSB02C000019). Attach the front arm (A) to the front cylinder head with a spacer (B) and the connector bracket bolt (10x1.25 mm) (C). Attach the rear arm (D) to the rear cylinder head with the harness clamp bracket bolt (8 x 1.25 mm) (E).
    Fig 27: Identifying Rear Arm And Rear Cylinder Head With Harness Clamp Bracket Bolt
    G05457527Courtesy of AMERICAN HONDA MOTOR CO., INC.
  57. Remove the front engine mount stop (A), then remove the front engine mount bolt (B) and vacuum hose (C).
    Fig 28: Identifying Engine Mount Stop And Front Engine Mount Bolt
    G05457528Courtesy of AMERICAN HONDA MOTOR CO., INC.
  58. M/T model: Remove the two bolts securing the rear engine damper.
    Fig 29: Identifying Rear Engine Damper Bolt
    G05457529Courtesy of AMERICAN HONDA MOTOR CO., INC.
  59. Remove the rear engine mount stop (A), then remove the rear engine mount bolt (B).
    Fig 30: Identifying Rear Engine Mount Stop And Rear Engine Mount Bolt
    G05457530Courtesy of AMERICAN HONDA MOTOR CO., INC.
  60. Remove the vacuum hose (C).
  61. M/T model: Remove the two bolts securing the shift cable bracket.
    Fig 31: Identifying Shift Cable Bracket Bolts
    G05457531Courtesy of AMERICAN HONDA MOTOR CO., INC.
  62. Raise the vehicle on the lift to full height.
  63. Make the appropriate reference lines (A) at both ends of the subframe (B) that line up with the edge (C) of the stiffeners(D).
    Fig 32: Identifying Ends Of Subframe
    G05457532Courtesy of AMERICAN HONDA MOTOR CO., INC.
  64. Attach the front subframe adapter (VSB02C000016) to the subframe by hanging the belt (A) over the front of the subframe (B), then secure the belt with its stop (C).
    Fig 33: Identifying Subframe Belt
    G05457533Courtesy of AMERICAN HONDA MOTOR CO., INC.
  65. Raise the jack and line up the slots in the front subframe adapter arms with the bolt holes on the jack base, then securely attach them with four bolts.
  66. Remove the subframe middle mount.
    Fig 34: Identifying Subframe Middle Mount
    G05457534Courtesy of AMERICAN HONDA MOTOR CO., INC.
  67. Remove the four 12 x 1.25 mm bolts (A) securing the subframe stiffeners (B), the four subframe mounting bolts (C), and the stiffeners, then lower the front subframe (D).
    Fig 35: Identifying Subframe Stiffeners And Subframe Mounting Bolts
    G05457535Courtesy of AMERICAN HONDA MOTOR CO., INC.
  68. Lower the vehicle.

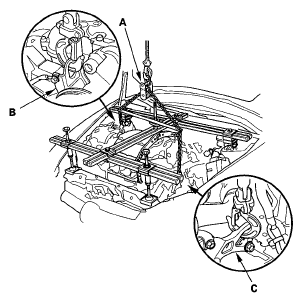

  69. Attach a chain hoist (A) to the engine hook (B) and the transmission hook (C), then lift up the engine/transmission until it is securely supported by the chain hoist, then remove the engine support hanger and engine hanger balance bar.
    Fig 36: Attaching Chain Hoist To Engine Hook
    G05457536Courtesy of AMERICAN HONDA MOTOR CO., INC.
  70. Remove the mounting bolts from the upper half of the side engine mount bracket.
    Fig 37: Identifying Side Engine Mount Bracket Bolts
    G05457537Courtesy of AMERICAN HONDA MOTOR CO., INC.
  71. Remove the ground cable (A).

    M/T model:

    Fig 38: Identifying Ground Cable - M/T Model
    G05457538Courtesy of AMERICAN HONDA MOTOR CO., INC.

    A/T model:

    Fig 39: Identifying Ground Cable - A/T Model
    G05457539Courtesy of AMERICAN HONDA MOTOR CO., INC.
  72. Remove the transmission upper mount bracket (B).
  73. Check that the engine/transmission is completely free of vacuum hoses, fuel and coolant hoses, and electrical wiring.
  74. Slowly lower the engine/transmission about 150 mm (6 in.). Check once again that all hoses and electrical wiring are disconnected and free from the engine/transmission, then lower it all the way and support it on the shop floor.
  75. Disconnected the chain hoist from the engine/ transmission.
  76. Raise the vehicle all the way, and remove the engine/transmission from under the vehicle.
