Sealing Bolt Installation

NOTE: When installing the sealing bolt, always use a new washer.

FRONT:

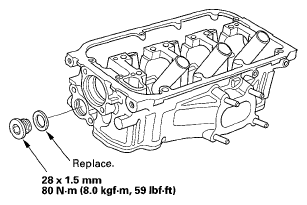

Fig 1: Sealing Bolt Washer - Front With Torque Specifications
G05457729Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR:

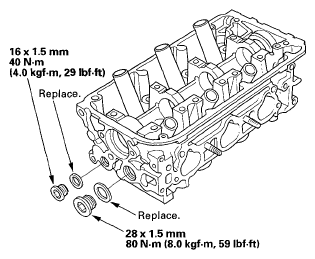

Fig 2: Sealing Bolt Washer - Rear With Torque Specifications
G05457730Courtesy of AMERICAN HONDA MOTOR CO., INC.
