Rocker Arm Assembly Removal

  1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL  ).
  2. Loosen the adjusting screws (A).

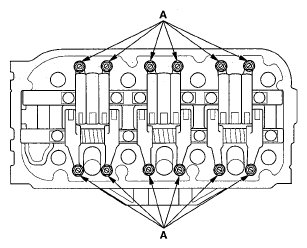

    Fig 1: Identifying Rocker Arm Assembly Adjusting Screws
    G05457676Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the rocker arm assembly.
    1. Loosen the rocker shaft mounting bolts in sequence two turns at a time, to prevent damaging the valves or rocker arm assembly.
    2. When removing the rocker arm assembly, do not remove the rocker shaft mounting bolts. The bolts will keep the springs and the rocker arms on the shafts.

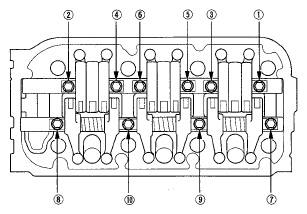

      Fig 2: Identifying Rocker Shaft Mounting Bolts Loosening Sequence
      G05457677Courtesy of AMERICAN HONDA MOTOR CO., INC.
