Throttle Actuator Control Module Subharness

THROTTLE ACTUATOR CONTROL MODULE SUBHARNESS REFERENCE

Connector or Terminal Ref Cavities Location Connects to Notes
Throttle actuator control module 1 16 Behind glove box
C251 2 13 Under right side of dash ECM/PCM wire harness

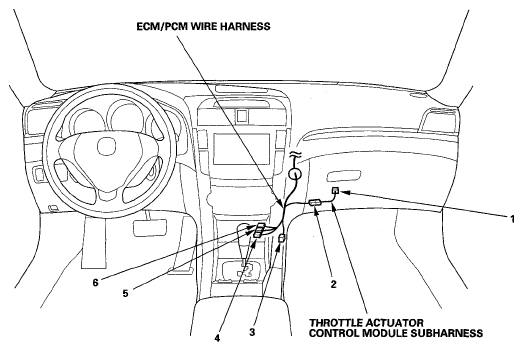

Fig 1: Identifying ECM/PCM Wire Harness And Throttle Actuator Control Module Subharness Location
G05462572Courtesy of AMERICAN HONDA MOTOR CO., INC.
