Center Console Rear Section Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Take care not to scratch the front seat, dashboard, and related parts.

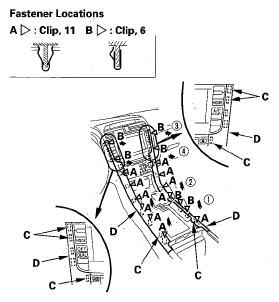

Detach the clips (A, B), and release the hooks (C) by pulling the center console trim (D) from both sides.

Fig 1: Identifying Center Console Trim Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Open the console box lid (A), then remove the console mat (B) and screws (C, D).

Fig 2: Opening Console Box Lid
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Slide the rear section of the center console(A) rearward to release the hooks (B).

Fig 3: Sliding Rear Section Of Center Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lift up the rear of the console (A). Detach the harness retainer clip (B) from the air duct, and disconnect the console accessory power socket connector (C), the light bulb socket connector (D), and the AUX connector (E), then remove the rear section of the center console.

Fig 4: Lifting Up Rear Of Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the console in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
- Make sure the console accessory power socket connector and the AUX connector are plugged in properly, and the light bulb socket is connected securely.
