Acura
>>
2008
>>
TL Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
HANDSFREELINK System
>>
Circuit Diagram
Circuit Diagram

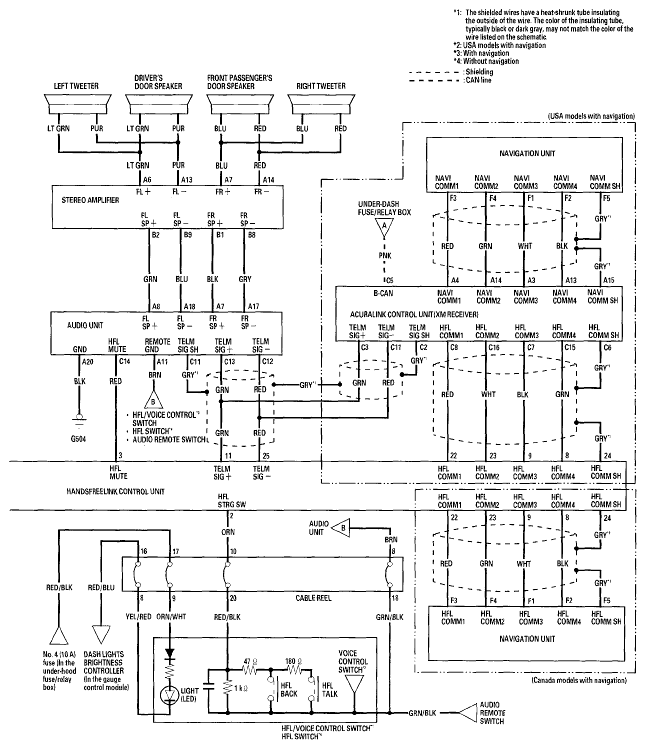

Fig 1: HandsFreeLink System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

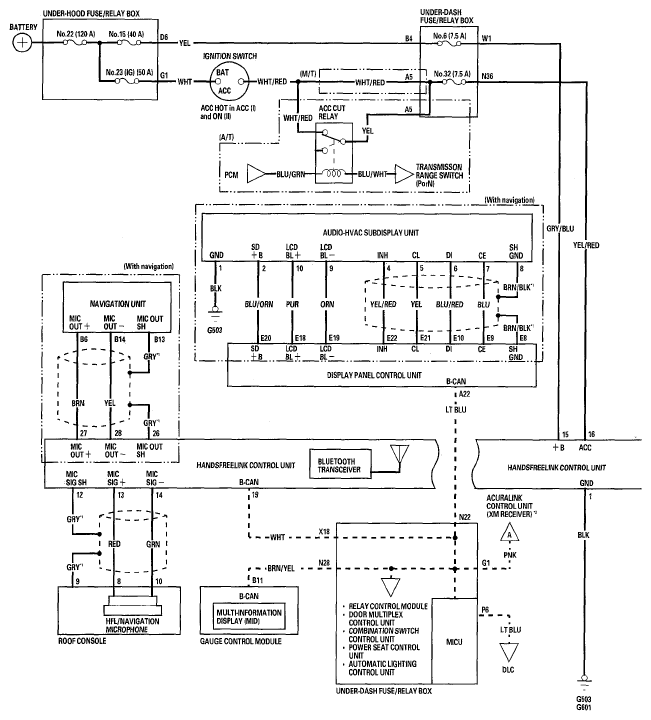

Fig 2: HandsFreeLink System Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
