Carpet Replacement

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove these items:
   • Front seats, both sides (see FRONT SEAT REMOVAL/INSTALLATION )
   • Rear seat cushion (see REAR SEAT REMOVAL/INSTALLATION )
   • Front door sill trim, both sides (see FRONT DOOR SILL AREA  )
   • Rear door sill trim, both sides (see REAR DOOR SILL AREA  )
   • B-pillar lower trim, both sides (see B-PILLAR LOWER TRIM  )
   • Kick panel, both sides (see FRONT DOOR SILL AREA  )
   • Center console (see CENTER CONSOLE REMOVAL/INSTALLATION )
   • Select lever bracket (see SHIFT LEVER REMOVAL )

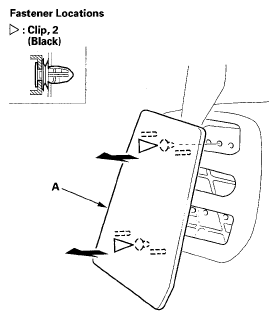

2. Detach the clips, then remove the footrest (A).
   Fig 1: Removing Footrest

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Push the knob (A) back to release the hooks (B), then pull up the accelerator pedal (C).
   Fig 2: Pushing Knob Back To Release Hooks (Pull Up Accelerator Pedal)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the bolts, then remove the rear vent duct C (A).
   Fig 3: Rear Vent Duct And Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

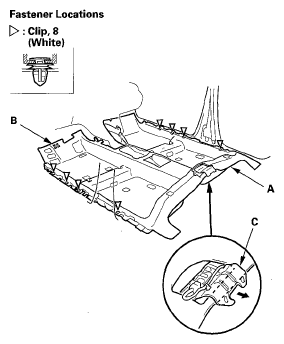

5. Detach the clips on both sides of the carpet (A). Pull the fastener (B) out, and pull out the carpet from under the plate (C), then remove the carpet.
   Fig 4: Identifying Carpet And Fasteners

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install the carpet in the reverse order of removal, and note these items:
   • Take care not to damage, wrinkle or twist the carpet.
   • Make sure the seat harnesses and antenna lead are routed correctly.
   • Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
