Center Console Armrest Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION  ).
2. Detach the clips, then remove the console trim (A). Disconnect the LF antenna connector (B).
   Fig 1: Identifying Rear Console Trim, LF Antenna Connector And Fasteners

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the screws (A) and detach the clips (B) and hooks (C), then remove the left console side trim (D) and right console side trim (E).
   Fig 2: Identifying Rear Console Side Trim Pieces And Fasteners

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the screws, and release the tabs (A), then remove the console outlet trim (B).
   Fig 3: Identifying Console Vent Outlet Trim And Fasteners

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

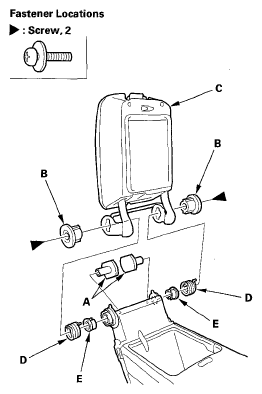

5. Remove the screws, hinge bushings (A), and hinge stoppers (B) from both sides, then remove the console armrest (C).
   Fig 4: Identifying Console Armrest Components

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the hinge springs (D) and bushings (E) from both sides.
7. Install the armrest in the reverse order of removal, and note these items:
   • Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
   • Push the clips into place securely.
