DTC B1826: Power Seat Front Up-down Motor Pulse Error

NOTE:
  • If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  • DTC B1826 is stored when the front up-down switch is operated more than 1 second after the seat moves to the most up or most down position, even when the system is OK.
  1. Clear the DTCs with the HDS.
  2. Turn the ignition switch OFF, and then back ON (II).
  3. Operate the power seat adjustment switch in each direction for more than 1 second each.
  4. Check for the DTCs with the HDS.

    Is DTC B1826 indicated?

    YES  - Go to step 5.

    NO  - Intermittent failure, the front up-down position sensor is OK at this time. Check for loose or poor connections at the power seat control unit connector.

  5. Check for DTCs with the HDS.

    Is DTC B1836 also indicated?

    YES  - Troubleshoot DTC B1836 first (see DTC B1836: POWER SEAT POSITION SENSOR CIRCUIT SHORT  ).

    NO  - Go to step 6.

  6. Check for DTCs with the HDS.

    Are DTCs B1825, B1827 and/or B1828 also indicated?

    YES  - Go to step  18.

    NO  - Go to step 7.

  7. Clear the DTCs with the HDS.
  8. Turn the ignition switch OFF, and then back ON (II).
  9. Operate the front up-down switch for 2 seconds, and check the front up-down motor operation.

    Does the front up-down motor run smoothly?

    YES  - Go to step 10.

    NO  - Go to step  25.

  10. Turn the ignition switch OFF.
  11. Disconnect power seat control unit connector A (40P).
  12. Disconnect the front up-down motor/position sensor 5P connector.
  13. Check for continuity between power seat control unit connector A (40P) terminals No. 12 and No. 29 and front up-down motor/position sensor 5P connector terminals No. 5 and No. 4 respectively.

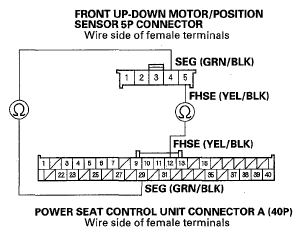

    Fig 1: Checking Continuity Between Terminals No. 12, 29 And Terminals No. 5, 4
    G05497260Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  - Go to step 14.

    NO  - Repair an open in the wire.

  14. Check for continuity between power seat control unit connector A (40P) terminal No. 12 and body ground.
    Fig 2: Checking Continuity Between Power Seat Control Unit Connector A (40P) Terminal No. 12 And Body Ground
    G05497261Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  - Repair a short to ground in the wire.

    NO  - Go to step 15.

  15. Reconnect power seat control unit connector A (40P).
  16. Turn the ignition switch ON (II).
  17. Measure the voltage between front up-down motor/position sensor 5P connector terminals No. 5 (+) and No. 4(-).
    Fig 3: Measuring Voltage Between Front Up-Down Motor/Position Sensor 5P Connector Terminals No. 5 And No. 4
    G05497262Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there about 5 V?

    YES  - Replace the front up-down motor/position sensor.

    NO  - If there is no voltage, replace the power seat control unit. If there is battery voltage, repair a short in the wire (sensor line).

  18. Turn the ignition switch OFF.
  19. Disconnect power seat control unit connector A (40P).
  20. Disconnect the front up-down motor/position sensor 5P connector.
  21. Check for continuity between power seat control unit connector A (40P) terminals No. 15 and No. 29 and front up-down motor/position sensor 5P connector terminals No. 3 and No. 4 respectively.
    Fig 4: Checking Continuity Between Terminals No. 15, 29 And Terminals No. 3, 4
    G05497263Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  - Go to step 22.

    NO  - Repair an open in the wire.

  22. Reconnect power seat control unit connector A (40P).
  23. Turn the ignition switch ON (II).
  24. Measure the voltage between power seat control unit connector A (40P) terminals No. 15 and No. 29.
    Fig 5: Measuring Voltage Between Power Seat Control Unit Connector A (40P) Terminals No. 15 And No. 29
    G05497264Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage when the front up-down switch is operated?

    YES  - Replace the front up-down motor/position sensor, and recheck for DTCs.

    NO  - Replace the power seat control unit.

  25. Turn the ignition switch OFF.
  26. Disconnect power seat control unit connector B (18P).
  27. Disconnect the front up-down motor/position sensor 5P connector.
  28. Check for continuity between power seat control unit connector B (18P) terminals No. 6 and No. 16 and front up-down motor/position sensor 5P connector terminals No. 1 and No. 2 respectively.
    Fig 6: Checking Continuity Between Terminals No. 6, 16 And Terminals No. 1, 2
    G05497265Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  - Go to step 29.

    NO  - Repair an open in the wire.

  29. Check for continuity between front up-down motor/position sensor 5P connector terminals No. 1 and No. 2 and body ground.
    Fig 7: Checking Continuity Between Front Up-Down Motor/Position Sensor 5P Connector Terminals No. 1, 2 And Body Ground
    G05497266Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  - Repair a short to ground in the wire.

    NO  - Go to step 30.

  30. Do the front up-down motor test (see SLIDE MOTOR, FRONT UP-DOWN MOTOR, REAR UP-DOWN MOTOR  ).

    Is the motor OK?

    YES  - Replace the power seat control unit.

    NO  - Replace the front-up-down motor/position sensor.
