Brake Pedal Position Switch (USA: Base, Technology Package; Canada: Base) Connector End View
Brake Pedal Position Switch (USA: Base, Technology Package; Canada: Base) Connector End View

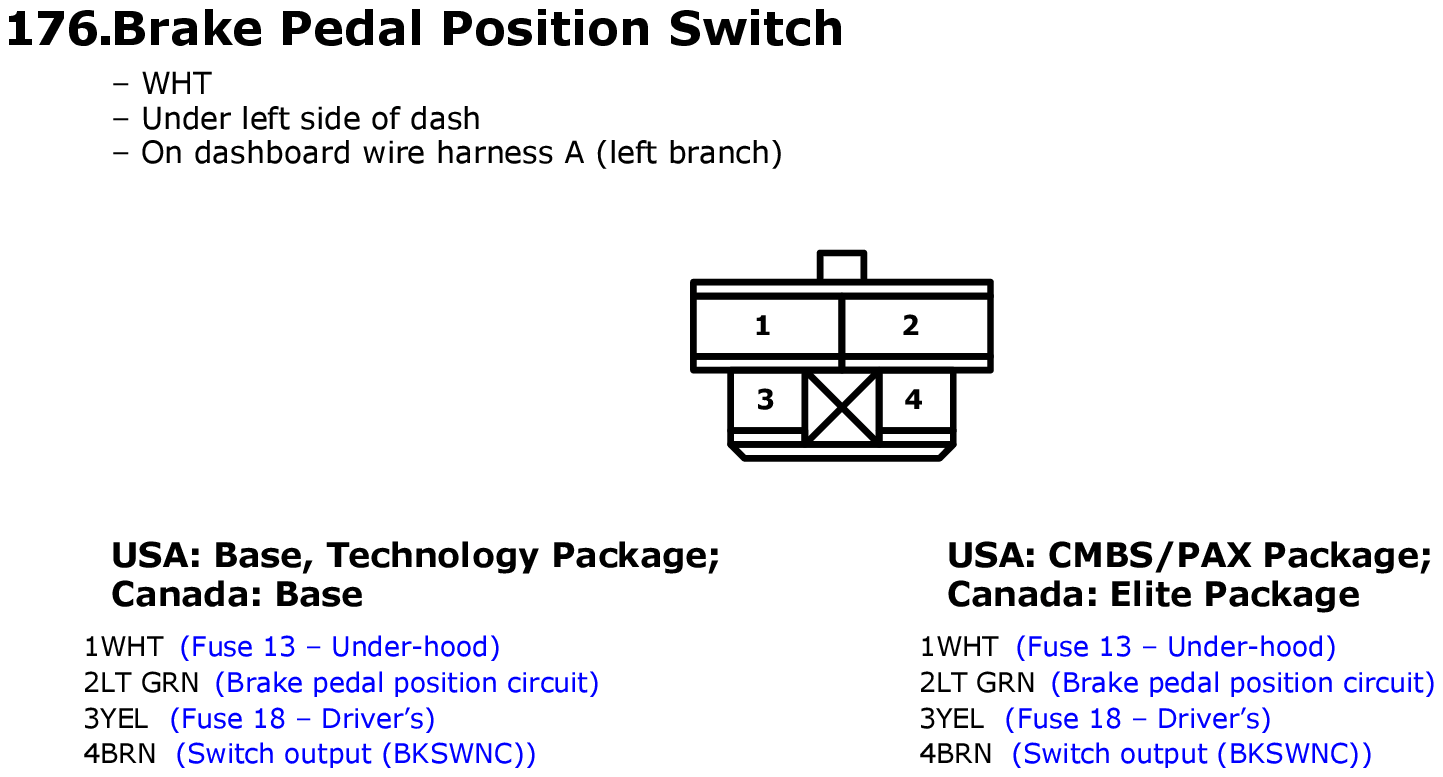

Fig 1: Brake Pedal Position Switch (USA: Base, Technology Package; Canada: Base) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
