Exploded View

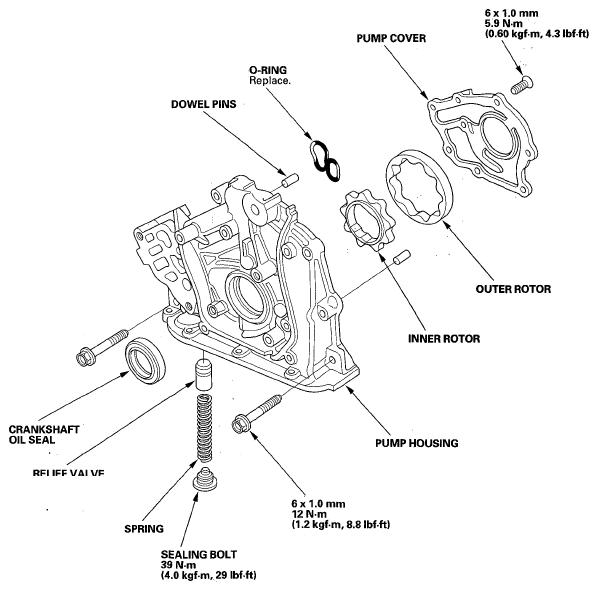

Fig 1: Exploded View Of Oil Pump Overhaul With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Oil seal driver, 64 mm 070AD-RCAA100
• Engine support hanger A and Reds AAR-T-12566 *
• Engine hanger adapter set VSB02C000031 *

  * These special tools are available through the Honda Tool and Equipment program, 1-888-424-6857.
