Front Passenger's Power Window Motor Connector End View

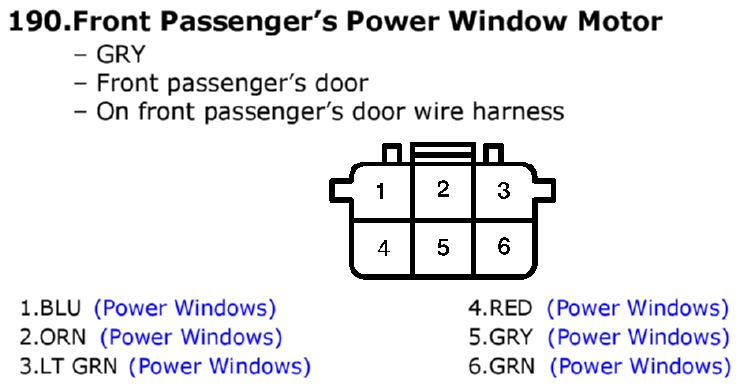

Fig 1: Front Passenger's Power Window Motor Connector End View

GHHW7617

Courtesy of AMERICAN HONDA MOTOR CO., INC.
