Rear Shelf LF Antenna Replacement

WARNING: This page is about a different car, the 2010 Acura TL and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk upper trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).
  2. Disconnect the 2P connector (A) from the rear shelf LF antenna (B).

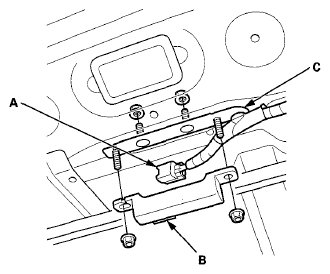

    Fig 1: Identifying Rear Shelf LF Antenna And 2P Connector
    G06680445Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two nuts and the rear shelf LF antenna.
  4. If necessary, remove the rear shelf (see TRIM REMOVAL/INSTALLATION - REAR SHELF AREA ).
  5. If necessary, remove the two nuts and replace the bracket (C).
  6. Install the antenna in the reverse order of removal.
